Xantrex Trace SW Series II Inverters have been replaced with the new
Xantrex XW series of sine-wave inverters please click here to get to that page

Trace Engineering, Trace SW inverters, Trace sinewave inverters

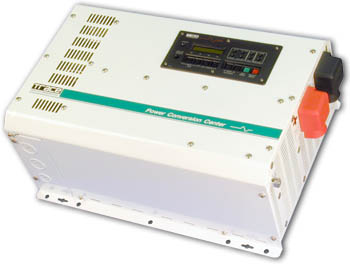

Click on pix to view

The result of new ideas and technologies, the Trace SW Series II from Xantrex delivers sine wave power without compromise. Now sine wave output with high efficiency, high surge ability and low idle current draw is available. More than just the finest inverter, with three microprocessors and bi-directional power topology, it has features and capabilities that previously were non-existent or available only as separate products.

check our links below

Index and Home Page

Site Map

Figuring Power Requirements

Load Evaluation Form

Insolation Map

Sample Systems

A.E. Component Overview

Component Pricing

Efficient Refrigeration

Propane Refrigeration

Conserv AC Refrigerator/Freezer

Generators: Wind, Gas, & Hydro

Solar Water Pumping

DC Sub Pump Info

Trace UX Series Specs

Trace DR Series Specs

Trace Sinewave Series

Solar Modules Specs

Air 403 Wind Generator

Ampair Wind Gen Specs

Aquair Hydro Gen Info

Solar Fencers & Ant Charmer

RV Systems

Who We Are/How To Order

Used & surplus bulletin board

Subscribe to our mailing list

As an Inverter:
1) Multiple step, low distortion, sine wave output with up to 96% peak conversion efficiency. Very low idle current draw allows high efficiency even when powering small loads.
2) Two inverters can be operated in series to provide 120/240 VAC three wire output with twice the power for 240 VAC loads. Requires optional stacking interface cable.
3) Adjustable search mode can reduce idle power draw to 1 watt when not operating AC loads.
4) Adjustable low battery cutout voltage with adjustable time delay prevents damaging batteries.
5) Protection circuitry guards against over-current, short circuit, over temperature, low battery and high battery conditions. Includes islanding protection for utility connected applications.

As a Battery Charger:
1) High efficiency, low current distortion design enables higher charge output from small generators.
2) Three-stage, temperature compensated charging algorithm ensures maximum battery charging life. Remote battery temperature probe is standard. Includes manual equalize mode with adjustable settings.
3) Adjustable grid and generator size allows matching of charger to the AC source.
4) Automatic "back-off" system prevents overloading of generators or nuisance tripping of input breakers.

When connected to grid or generator, the SW Inverter synchronizes its waveform to that of the AC source, locks to it and operated in parallel. This ability, coupled with the bi-directional power topology and micro-processor control, makes it possible for the unit to offer multiple operating modes.

Generator Support Mode: When charging from a generator, the generator's output voltage and current are monitored. If either falls outside user adjustable limits, the unit sheds itself as a load and then reverses the power flow if necessary. This delivers energy from the batteries to the loads assisting the generator. When operating two units in series at 240 VAC, one 120 VAC leg can be charging while the other is supporting.

Standby Power Mode: Two AC inputs are provided--one for generator and one for utility grid. When AC fails, transfer to inverter power is no longer than 34 milliseconds. If the grid and generator are connected, the unit can be set to start the generator after the grid has failed. After grid returns, the generator is automatically stopped. The inverter output is synchronized to the grid and the grid is reconnected to the loads. Note: generator must have the reciprocating circuitry to accommodate the SW inverter.

Battery Voltage and Transfer Mode: If the batteries are low, a low battery set point triggers connection to the grid.

Generator Start Mode: Automatic generator start features are standard and user programmable. Gen start can be triggered by wither battery voltage or load size connected. A "quiet time" can be set to restrict generator operation unless absolutely required. The start sequence is fully adjustable and is now compatible with a greater variety of generator types. Generator MUST be set up for remote starting and designed for unattended operation.

Utility Interactive Mode: Operating as a bi-directional battery charger, power from any source that tries to raise the batteries above their programmed float voltage is delivered to the grid. A GRID USAGE TIMER can be set to allow selling of electricity to the utility only during prescribed hours. Sell back current is adjustable. CAUTION: Utility intertie must have approval of local utility company.

Peak Load Shaving Mode: (1) The sine wave series may be programmed to operate from batteries during a specified period of the day. Batteries may be charged during lower rate periods. (2) During a programmable time of the day, power is delivered to the grid from the batteries. An alternative (lower) adjustable float voltage is employed to allow variable battery discharge depths.

Three user adjustable voltage-controlled signal relays are provided to control charging sources and loads.

Selecting modes, enabling features and adjusting parameters are easily accomplished by moving through a menu tree that is displayed on the control panel's LCD read-out. Doubling as a meter, the LCD displays inverter amps, input amps, load amps, battery volts DC and inverter volts AC. Additionally, control panel LEDs report the status of eight system conditions.

We are proud to offer a full line of products from Xantrex formerly Trace Engineering

New Series II Design
1) Easier to use programming system with separate "User" and "Setup" menus.
2) New backlight LCD display on control panel improves use in low light conditions.
3) Improved AC wiring access and AC conduit provisions makes installation easier.
4) New "soft start" systems allows inverter to run even heavier loads and improves reliability.
5) Includes a new, easier to read universal owners manual that covers all SW series II inverters.
6) Enhanced generator start system works with a greater variety of generator types.

NOTE: The above pricing reflectsTrace's list pricing; if you buy your system from us you will receive substantial system discounts. Call us for your Trace pricing! (European voltage and hertz range also available).

Specifications	SW2512	SW4024	SW3024E	SW4048	SW3048E	SW5548	SW4548E
Nominal DC Input Voltage AC Output Voltage (RMS) Nominal Frequency Continuous Power @ 20° Continuous AC Output (@ 25°C) Maximum AC Output (RMS) Efficiency (Peak) Automatic AC Transfer Relay Maximum Charging Rate	12VDC 120VAC 60 HZ 2500VA 21 amps 60 amps 90% 60 amps 150 amps	24VDC 120VAC 60 HZ 4000VA 33 amps 78 amps 94% 60 amps 120 amps	24VDC 230VAC 50 HZ 3300VA 14 amps 34 amps 94% 30 amps 100 amps	48VDC 120VAC 60 HZ 4000VA 33 amps 78 amps 95% 60 amps 60 amps	48VDC 230VAC 50 HZ 3300VA 14 amps 34 amps 95% 30 amps 50 amps	48VDC 120VAC 60 HZ 5500VA 46 amps 78 amps 96% 60 amps 75 amps	48VDC 230VAC 50 HZ 4500VA 20 amps 34 amps 96% 30 amps 60 amps
DC Input Requirements Search Mode On Mode (no load - idle) At Full Rated Power Short Circuited Output Nominal DC Input Voltage Range	0.08A (1W) 1.0A (12W) 275 amps 700 amps 11.8 to 16.5	0.04A (1w) 0.66A (16W) 200 amps 360 amps 22 to 33	0.04A (1W) 0.66A (16W) 166 amps 320 amps 22 to 33	0.025A (1W) 0.33A (16W) 100 amps 180 amps 44 to 66	0.025A (1W) 0.33A (16W) 83 amps 160 amps 44 to 66	0.04A (1W) 0.40A (20W) 137 amps 180 amps 44 to 66	0.04A (1W) 0.40A (20W) 106 amps 138 amps 44 to 66
AC Output Characteristics AC Output Waveform Voltage Regulation Total Harmonic Distortion Power Factor Allowed Frequency Regulation Load Sensing Range	Sinewave, 34 to 52 steps per cycle +/- 2% 3 to 5% (stand alone operation) -1 to 1 +/- 0.04% (crystal regulated) 16 to 240 watts
Options Remote Control Panel (50' max) Stacking Interface for double power (required two inverters) Conduit Box DC Disconnect Breaker DC Battery/Inverter Cables	SWRC SWI (120/240) SWCB DC 250 BC5-4/0	SWRC SWI (120/240) SWCB DC 250 BC5-4/0	SWRC No SWCB DC 250 BC5-4/0	SWRC SWI (120/240) SWCB DC 175 BC5-2/0	SWRC No SWCB DC 175 BC5-2/0	SWRC SWI (120/240) SWCB DC 250 BC5-4/0	SWRC No SWCB DC 175 BC5-2/0
Enclosure Type Specified Temp Range Allowed Temp Range Dimensions, Inverter Only Dimensions, Shipping Mounting	Indoor, ventilated, steel chassis with powdercoat finish 32°F to 104°F (0°C to +40°C) (output will meet specified tolerances) -40°F to 140°F (-40°C to +60°C) (output may not meet specified tolerances) 15" (38 cm) high, 22.5" (57 cm) wide, 9" (23 cm) deep (when wall mounted) 20.5" (52 cm), 27" (69 cm), 15.5" (40 cm) Wall or Shelf Mount
Weight - Inverter Only Weight - Shipping	90 lbs (42 kg) 96 lbs (44 kg)	105 lbs (48 kg) 111 lbs (50 kg)	105 lbs 111 lbs	105 lbs 111 lbs	105 lbs 111 lbs	136 lbs (63 kg) 143 lbs (65 kg)	136 lbs 143 lbs.
Other voltage/frequency for export are as follows: SW3024J = 105VAC/50 HZ SW4024K = 105VAC/60 HZ SW4024W = 220VAC/60HZ (two wire output only).
(specifications may change without notice) Options: Remote control panel (SWRC), stacking interface cable (SWI), conduit box for code approved DC input battery cables (SWCB).

*********
