Renewable Energy System 6
Ranch Solar Electric System
|
 |
Click to view
insolation zone map
|
|
The amount of power this system will
supply in an average day, and in what zone:
Zone 1…..........................17772W
Zone 2…..........................16291W
Zone 3…..........................14810W
Zone 4…..........................13329W
Zone 5…..........................12440W
Zone 6…..........................10367W |
|
EXAMPLE SYSTEM 6: |
| Qty. |
|
Componenets |
| 24 |
|
200 watt solar modules |
| 6 |
|
30’ #10-2 MC cable assemblies |
| 2 |
|
12x top-of-pole mount structures |
| 1 |
|
Outback FWPV8 combiner boxes with six 15A
breakers & SOV |
| 2 |
|
Outback FM60 MPPT solar charge controllers with
breakers |
| 1 |
|

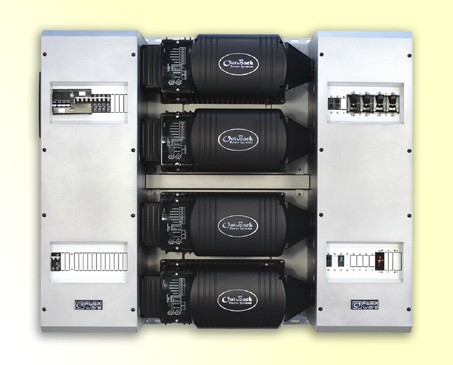

Outback Flexware 1000 Power Center* |
| 1 |
|
Outback RTS temperature sensor |
| 4 |
|
Outback VFX3648 3600W 48V sine wave inverters |
|
|
|
* Outback FW1000 Power Center includes: Mate
controller, hub-4, X-240 transformer, breakers, AC input/bypass, buss
bars all pre-wired into conduit boxes and assembled on a steel mounting
plate.
Equipment total = $50,102
($10.44 per watt of rated solar power)
Due to the volatility of battery prices please call
for current pricing on the following "rest of system" components.
| 24 |
|
24 Surrette 2KS-33PS 2V 1750 amp-hour batteries |
| 4 |
|
4 #2/0 AWG 24” battery interconnects |
| 4 |
|
4 #2/0 AWG 36” battery interconnects |
| 2 |
|
2 sets of #4/0 AWG 10’ inverter cables |
| 2 |
|
2 Outback BB battery bus bars |
| 4 |
|
4 Outback shunt straps |
Actual performance will vary depending on your local conditions.
Prices can change without notice, please call for an up to date system
quote.
|
This is an example system of how much power it will provide and the
cost. These are merely guidelines to assist you; we design power
systems specifically to meet YOUR power needs. We offer
a Solar Electric Design Guide and a Product Catalog for just $10.00 --
a boon to your energy library! These publications are filled with
planning & system sizing data, calculating power consumption,
battery care, generator-inverter systems, basic component info on
regulators, modules, inverters, batteries; wind generators, RV systems,
and battery wiring, among other things. This will be a good
investment for those seriously considering an alternate energy power
system. |
|
|
|
