Renewable Energy System 5
Large Home Solar Electric System
(for remote or grid-tie applications)
|
 |
Click to view
insolation zone map
|
|
The amount of power this system will
supply in an average day, and in what zone:
Zone 1…..................….......10580W
Zone 2….........................…..9698W
Zone 3….........................…..8816W
Zone 4….........................…..7934W
Zone 5……...........................7406W
Zone 6……...........................6172W |
|
EXAMPLE SYSTEM 5: |
| Qty. |
|
Componenets |
| 16 |
|
130 watt solar panels |
| 4 |
|
30’ #10-2 MC cable assemblies |
| 1 |
|
16x top-of-pole mount structure
(Yes, DP makes a single rack that will hold 16 130’s!) |
| 1 |
|
Outback FWPV8 combiner box with four 15A breakers
& SOV |
| 1 |
|
Outback FM60 MPPT solar charge controller |
| 2 |
|
Outback VFX3648 (or GVFX3648) 3600W 48V sine wave
inverters |
| 1 |
|
Outback X-240 transformer |
|
|
|
|

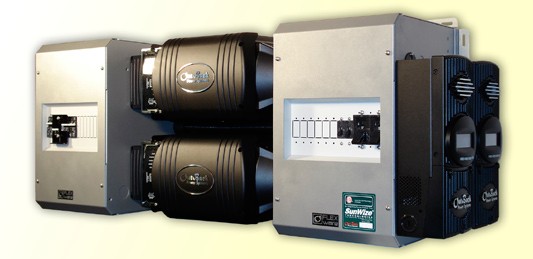

* Outback FW500 Power Center includes: Mate
controller, hub-4, breakers, AC input/bypass, buss bars all
pre-wired into conduit boxes and assembled on a steel mounting
plate.
 Equipment total = $23,693
($11.39 per watt of rated solar power) Due to
the volatility of battery prices please call for current pricing
on the following "rest of system" components. |
| 12 |
|
Surrette 4KS-25PS 4V 1350 amp-hour batteries |
| 2 |
|
#2/0 AWG 24” battery interconnects |
| 2 |
|
#2/0 AWG 36” battery interconnects |
| 1 |
|
set of #4/0 AWG 10’ inverter cables |
|
|
Actual performance will vary depending on your local conditions.
Prices can change without notice, please call for an up to date system
quote.
|
This is an example system of how much power it will provide and the
cost. These are merely guidelines to assist you; we design power
systems specifically to meet YOUR power needs. We offer
a Solar Electric Design Guide and a Product Catalog for just $10.00 --
a boon to your energy library! These publications are filled with
planning & system sizing data, calculating power consumption,
battery care, generator-inverter systems, basic component info on
regulators, modules, inverters, batteries; wind generators, RV systems,
and battery wiring, among other things. This will be a good
investment for those seriously considering an alternate energy power
system. |
|
